ch7055a

如果您对产品有相关疑问,或者遇到任何,您都可以注册网站帐号,
然后到利来app官网的技术支持论坛去提问寻求帮助。

特征


  • three 10-bit high speed dacs

  • sampling frequency up to 200 mhz

  • dac output current range: 2.0 ma to 36 ma

  • wide range of input resolutions support for up to 1920x1200@75hz (i.e. 640x480, 800x600, 1024x768, 1280x1024, 1600x1200 and etc.)

  • composite sync control input

  • composite sync output

  • sync on green mode support

  • analog video outputs compliant with vesa vsis v1r2 specification

  • power-down mode support

  • contrast and brightness adjustment support

  • serial programmable interface support

  • io supply voltages from 1.8v to 3.3v.

  • offered in a 40-pin qfn package

描述

chrontel’s ch7055a is a low-cost, low-power semiconductor device that consists of three separate 10-bit video digital-to-analog converters (dacs), which can convert the digital input signals into analog current outputs at a maximum conversion rate of 200 mhz.

the dacs are based on current source architecture. sync and dac control logic module receives horizontal and vertical sync input, generates composite sync and internal synchronization control signal. the ch7055a has a power-down mode to reduce power consumption as required.

the ch7055a is fabricated in a cmos process that ensures high functionality with low power dissipation. with advanced image enhancement module integrated to achieve the modification of the contrast, brightness, etc, the display quality can be flexible adjusted and optimized through the serial programmable interface.

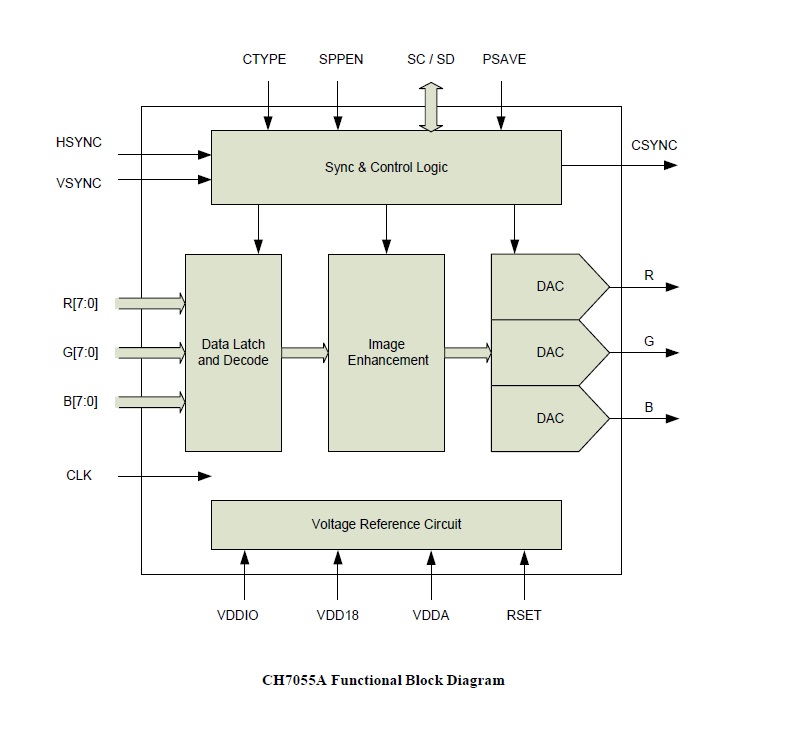

结构图

数据表

应用说明


  •   pcb layout and design considerations for ch7055, an-b024.

技术报告

暂无信息

规格

input interface ttl/digital rgb

output interface  analog rgb csync

audio interface   no

other features   no

package type  qfn40

订单信息

part number package type operating temperature range minimum order quantity

ch7055a-bf  40 qfn, lead-freecommercial : -20 to 70°c490/tray

ch7055a-bfi 40 qfn, lead-freeindustrial : -40 to 85°c490/tray
