特征


  • hdmi receiver compliant with hdmi 1.4 specification

  • analog rgb output for vga with triple 9-bit dac up to 200mhz pixel rate. sync signals can be provided in separated or composite manner. support vesa and cea timing standards up to wuxga 1920x1200@60hz with reduced blanking and 1920x1080@60hz

  • on-chip audio encoder which support 2 channel iis/s/pdif audio output

  • vga output is compliant with vesa vsis v1r2 specification

  • mcu embedded to handle the control logic

  • support device boot up by automatically loading firmware from on-chip flash

  • integrated edid buffer

  • crystal free architecture

  • vga connection detection supported

  • hdmi input detection supported

  • support auto power saving mode and low stand-by current

  • support ycc to rgb conversion in itu-r bt.601 and 709 color space

  • iic slave interface and hdmi ddc interface are available for debug and firmware update.

  • low power architecture

  • rohs compliant and halogen free package

  • offered in 40-pin qfn package (5 x 5 mm)

描述

chrontel’s ch7101b is a low-cost, low-power semiconductor device that consists of hdmi receiver, three separate 9-bit video digital-to-analog converters (dacs) and audio encoder, which can convert hdmi signals into vga outputs at a maximum conversion rate of 200 mhz  with iis or spdif audio output.

the hdmi receiver integrated is compliant with hdmi 1.4b. the dacs are based on current source architecture. and the vga output meet vesa vsis v1r2 clock jitter target. with sophisticated mcu and the on-chip flash, ch7101b supports auto-boot and edid buffer. leveraging the firmware auto loaded from the embedded flash, ch7101b can support hdmi input detection, dac connection detection and determine to enter into power saving mode automatically.

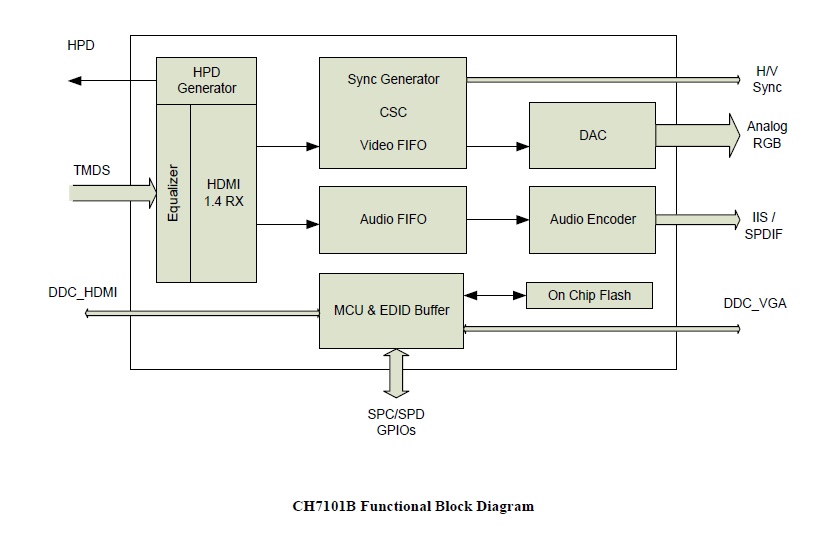

结构图

应用说明

 pcb layout and design guide for ch7101b hdmi to vga converter, an-b026 (rev0.5)

  refer to the an-b037 for industrial products in detail

技术报告

暂无信息

规格

input interface    hdmi, dvi

output interface   vga, analog rgb csync

audio interfaceiis, spdif output

other features    no

package type    qfn40

订单信息

part number  package type  operating temperature range minimum order quantity

ch7101b-bf  40 qfn, lead-freecommercial : -20 to 70°c490/tray

ch7101b-bfi  40 qfn, lead-freeindustrial : -40 to 85°c490/tray
