ch7102a

如果您对产品有相关疑问,或者遇到任何,您都可以注册网站帐号,
然后到利来app官网的技术支持论坛去提问寻求帮助。

特征


  • hdmi receiver compliant with hdmi 1.4 specification

  • support itu-r 601 or itu-r 656 compatible ycbcr 4:2:2 output format with embedded syncs or discrete syncs. support resolution up to 1280 x 720@60hz for ycbcr 4:2:2 output

  • on-chip audio encoder which support 2 channel iis/s/pdif audio output

  • optional hdcp 1.4 specification supported

  • mcu embedded to handle the control logic

  • support device boot up by automatically loading firmware from on-chip flash

  • integrated edid buffer

  • crystal free architecture

  • hdmi input detection supported

  • support auto power saving mode and low stand-by current

  • support rgb to ycc conversion in itu-r bt.601 and 709 color space

  • iic slave interface and hdmi ddc interface are available for configuration and firmware update.

  • low power architecture

  • rohs compliant and halogen free package

  • offered in 40-pin qfn package (5 x 5 mm)

描述

chrontel’s ch7102a is a low-cost, low-power semiconductor device that consists of hdmi receiver, ycbcr 4:2:2 encoder and audio encoder, which can convert hdmi signals into 8 bit ycbcr 4:2:2 outputs with iis or spdif audio output.

the hdmi receiver integrated is compliant with hdmi 1.4b. with sophisticated mcu and the on-chip flash, ch7102a supports auto-boot and programmable edid rom. leveraging the firmware auto loaded from the embedded flash, ch7102a can support hdmi input detection enter into power saving mode automatically.

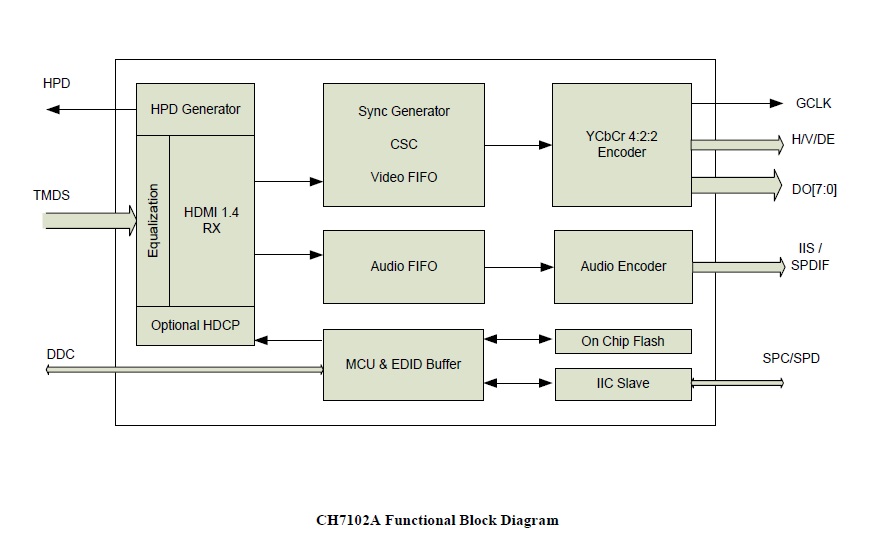

结构图

数据表

应用说明

 pcb layout and design guide for ch7102a hdmi to bt656 converter with iic slave, an-b027 (rev0.1)

技术报告

暂无信息

规格

input interface  hdmi, dvi

output interface  ttl / bt656

audio interface  iis, spdif output

other features  no

package type    qfn40

订单信息

part numberpackage type operating temperature rangeminimum order quantity

ch7102a-bf 40 qfn, lead-freecommercial : 0 to 70°c490/tray

ch7102a-bfi 40 qfn, lead-freeindustrial : -40 to 85°c490/tray
