ch7103b

如果您对产品有相关疑问,或者遇到任何,您都可以注册网站帐号,
然后到利来app官网的技术支持论坛去提问寻求帮助。

特征


  • hdmi receiver compliant with hdmi 1.4 specification

  • support hdtv format (ypbpr output) for 480p, 576p, 720p, 1080i and 1080p

  • on-chip audio encoder which support 2 channel iis/s/pdif audio output

  • mcu embedded to handle the control logic

  • support device boot up by automatically loading firmware from on-chip flash boot rom

  • integrated edid buffer

  • crystal free architecture

  • tv connection detection supported

  • hdmi input detection supported

  • support auto power saving mode and low stand-by current

  • support rgb to ycc conversion in itu-r bt.601 and 709 color space

  • iic slave interface and hdmi ddc interface are available for debug and firmware update.

  • low power architecture

  • rohs compliant and halogen free package

  • offered in 40-pin qfn package (5 x 5 mm)

描述

chrontel’s ch7103b is a low-cost, low-power semiconductor device that consists of hdmi receiver, three separate 9-bit video digital-to-analog converters (dacs), hdtv(ypbpr) encoder, and audio encoder, which can convert hdmi signals into hdtv outputs with iis or spdif audio output.

the hdmi receiver integrated is compliant with hdmi 1.4b. with sophisticated mcu and the on-chip flash, ch7103b supports auto-boot and edid buffer. leveraging the firmware auto loaded from the on-chip flash, ch7103b can support hdmi input detection, dac connection detection and determine to enter into power saving mode automatically.

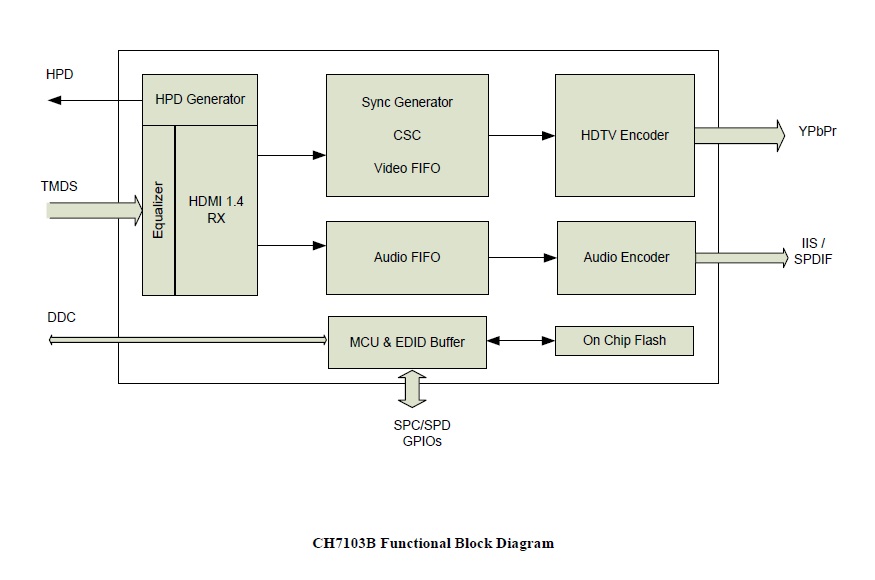

结构图

应用说明

 pcb layout and design guide for ch7103b hdmi to hdtv converter, an-b028 (rev0.2)

  refer to the an-b037 for industrial products in detail

技术报告

暂无信息

规格

input interface  hdmi, dvi

output interface  ypbpr

audio interface  iis, spdif output

other features   no

package type  qfn40

订单信息

part number package type operating temperature range minimum order quantity

ch7103b-bf  40 qfn, lead-freecommercial : 0 to 70°c490/tray

ch7103b-bfi  40 qfn, lead-freeindustrial : -40 to 85°c490/tray
