ch7317b

如果您对产品有相关疑问,或者遇到任何,您都可以注册网站帐号,
然后到利来app官网的技术支持论坛去提问寻求帮助。

特征

  • supporting analog rgb outputs for a display monitor

  • supporting maximum pixel rate of 165mp/s or graphics resolutions up to 1920x1200[1]

  • high-speed sdvo[2] (1g~2gbps) ac-coupled serial differential rgb inputs

  • supporting monitor connection detection

  • programmable power management

  • fully programmable through serial port

  • configuration through intel® sdvo opcode[2]

  • offered in package and package





  •
  •
  •
  •



[1] reduced blanking
[2] intel® proprietary

描述

the ch7317b is a display controller device interfaces seamlessly to hdtv or pc monitors that is equipped with a vga rgb interface display connector. its input port, complied with intel sdvo specification 1.2, can accept a digital graphics, high-speed, ac-coupled, serial-differential rgb input signal, and convert it to analog rgb signal for driving the display.

the ch7317b supports maximum pixel rate of 165mp/s and is capable of displaying up to 1920x1200 resolution with reduced blanking. the built-in serial port controller will allow the graphics chipset to obtain the monitor’s edid information or communicate with ch7317b internal registers through sdvo opcodes. in addition, the transmitter is designed with a monitor connection detection algorithm that allows the graphics chipset to read back the connection status through ch7317b internal registers.

the ch7317b provides the boundary-scan test to help system developers to check the interconnection between chip i/o and the printed circuit board for faults. when the device is powered down by the graphics chipset, its current consumption is less than 100ua. the ch7317b is available in 64-pin lqfp and 64-pin qfn packages.

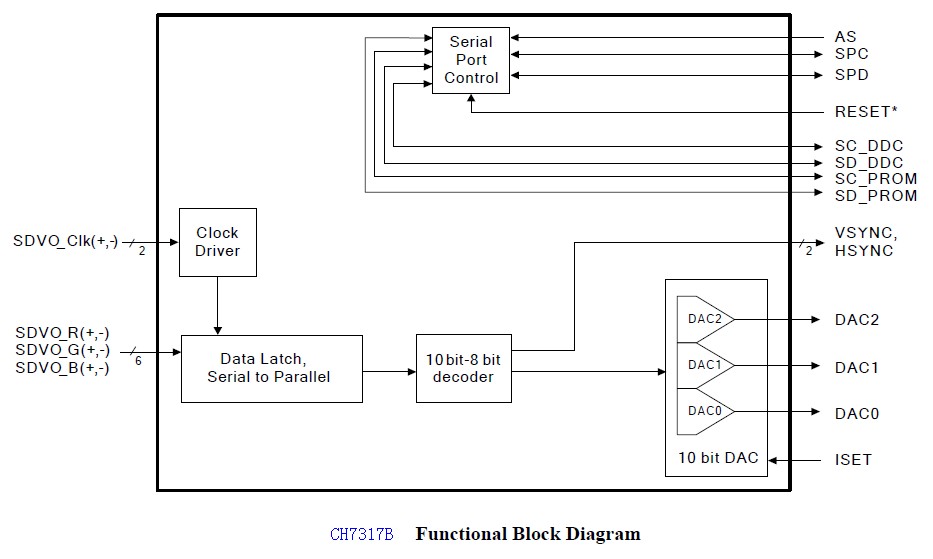

结构图

数据表

 view the ch7317b datasheet

应用说明

 pcb layout and design considerations for the ch7317b sdvo / rgb dac, an-113.pdf

技术报告

暂无信息

规格

input interface  sdvo

output interface  vga

audio interface  no

other features  no

package type  lqfp64

订单信息

part number package type number of pins voltage supply temperature grade

ch7317b-tf  lead free - lqfp642.5v & 3.3vcommercial / automotive grade 4

ch7317b-tf-tr  lead free - lqfp in tape & reel642.5v & 3.3vcommercial / automotive grade 4

ch7317b-tf-i-tr  lead free - lqfp in tape & reel642.5v & 3.3vindustrial / automotive grade 3

ch7317b-bf  lead free - qfn642.5v & 3.3vcommercial / automotive grade 4

ch7317b-bf-tr  lead free - qfn in tape & reel642.5v & 3.3vcommercial / automotive grade 4
